Why can one light timber beam support demanding concrete formwork? Its engineered I-shaped section provides the answer. An h20 beam combines timber flanges and a plywood web. This guide explains its structure, dimensions, capacity, uses, benefits, limits, and purchasing checks.
● An h20 beam is an engineered timber I-beam used mainly in reusable concrete formwork.
● “H20” normally means a nominal height of 200 mm. It does not define beam length or load capacity.
● The upper and lower flanges resist most bending forces. The plywood web connects them and transfers shear.
● Common applications include slab, wall, column, curved, climbing, bridge, and foundation formwork.
● Important purchasing data includes cross-section size, length, weight per metre, bending resistance, shear resistance, stiffness, adhesive type, and dimensional tolerance.
● Capacity changes according to span, spacing, support layout, concrete load, beam condition, and system design.
● End caps can reduce moisture and impact damage, but they cannot restore structural damage.
● Compare verified documents, samples, quality control, packaging, and export support before ordering.
An h20 beam is an engineered wooden I-beam made mainly for temporary concrete formwork. It supports formwork panels and transfers fresh-concrete loads into props, frames, walers, or shoring towers.
Unlike ordinary sawn timber, an h20 formwork beam uses separate bonded parts. This structure balances bending performance and practical handling.
The “20” generally refers to a nominal beam height of 20 centimetres, or 200 mm. It does not show beam length, h20 beam weight, allowable span, or h20 beam capacity.
H20 should therefore be treated as a beam category. Buyers must still examine the actual h20 beam specification.
The upper and lower flanges carry most tension and compression caused by bending. Controlled moisture, sound finger joints, and consistent dimensions support stable performance.
The central web connects both flanges and transfers shear. It creates beam depth without adding the weight of a solid timber section.
A solid beam contains material across its entire section. An I-shaped h20 wooden beam places more material near the upper and lower edges, where bending stresses are greater.
This arrangement creates an efficient strength-to-weight balance. The deep section helps control bending, while the lower mass improves handling.

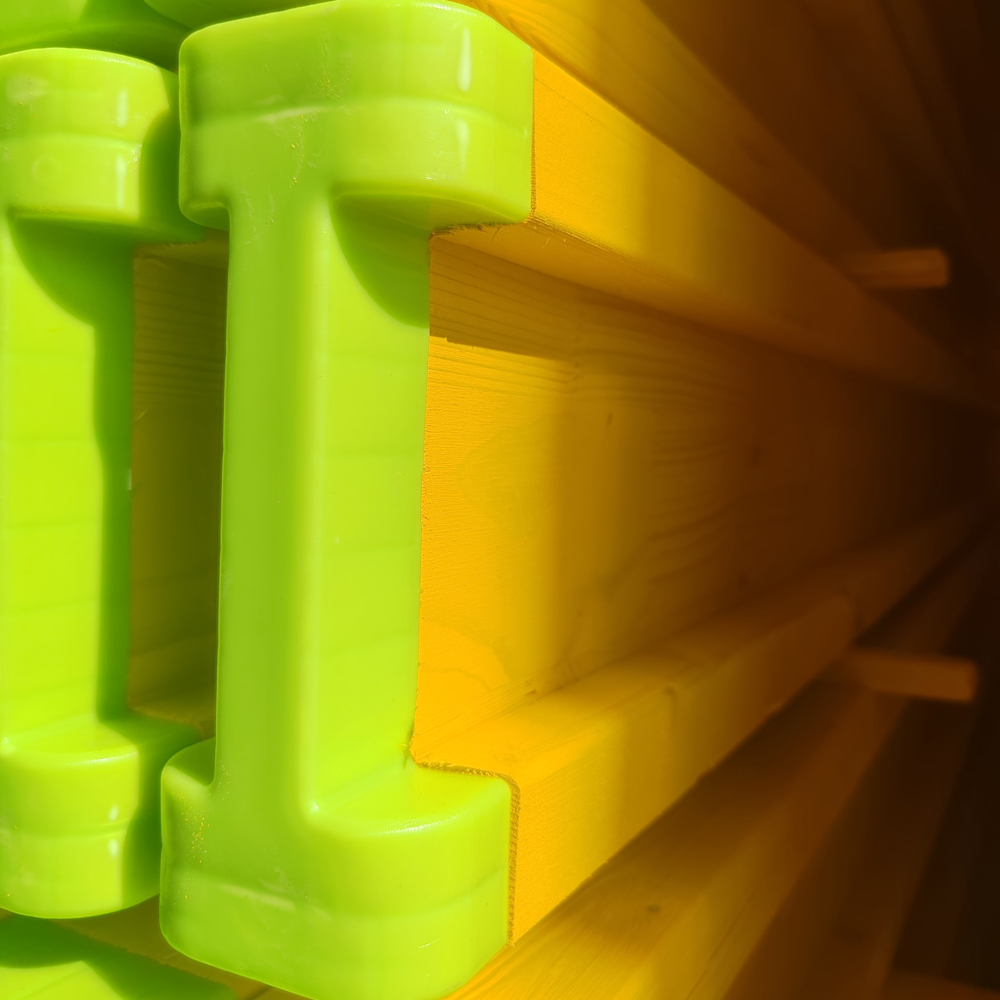

Beam ends face impacts during transport, erection, and stripping. Resin coatings, plastic caps, or metal covers can reduce impact damage and moisture entry. They do not make a damaged beam safe.
Fresh concrete loads the formwork panel first. Secondary beams support the panel and pass forces into primary beams. Those beams transfer loads into props, frames, or towers.
Closer spacing often reduces panel deflection and lowers the load carried by each beam. Wider spacing may increase stress and movement.
In wall or column formwork, H20 beams sit behind the form face. They resist lateral concrete pressure and transfer it toward walers, ties, and braces.
Correct spacing helps keep the panel straight. Weak connections may cause bulging, leakage, or dimensional errors.
An H20 system may include plywood, props, heads, frames, clamps, tie rods, and bracing. Safe performance depends on the complete design, connections, and installation quality.
H20 beams support panels beneath concrete floors and structural beams. They may serve as primary or secondary bearers. Their regular section helps form a level grid. Spacing depends on concrete depth, panel strength, beam capacity, and the prop layout.
Vertical systems use the beam as a backing member behind the panel. It transfers fresh-concrete pressure toward walers and ties while helping control alignment and panel deflection.
Pouring rate, wall height, concrete condition, and temperature may affect lateral pressure.
H20 beams can form part of curved, irregular, and climbing formwork. Their regular section works well with fabricated frames and adjustable connections.
Special geometry still requires detailed engineering because inclined surfaces and unusual joints may create local forces.
H20 timber beams may support formwork for piers, box girders, foundations, and retaining structures. Their lower weight supports repeated handling across large sites.
Civil projects still need project-specific checks for span, stability, bracing, and lifting.
The I-section provides useful stiffness without a full solid section’s mass. Manual handling may support faster erection and stripping, although safe lifting remains necessary.
Engineered construction can provide more consistent height and straightness than random solid timber. This helps repeat layouts and maintain cleaner connections.
Reuse may reduce cost per pour. Actual service life depends on loading, cleaning, storage, moisture, handling, and inspection.
H20 beams can support many horizontal and vertical formwork layouts. Standard lengths simplify modular planning, while custom lengths may reduce cutting waste.
Compatibility with panels, props, heads, and clamps must be checked before purchasing.
Timber can be damaged by deep cuts, uncontrolled drilling, fire, prolonged moisture, and end crushing. Web damage may reduce shear performance, while flange damage may reduce bending performance.
Do not hide structural damage using filler, screws, or paint.
Define concrete depth, wall pressure, beam role, span, spacing, prop grid, panel type, and pouring sequence. Then compare these needs against verified load data.
Length alone does not confirm suitability. Strength and deflection both matter.
A complete h20 timber beam specification should state dimensions, length, weight, bending value, shear value, stiffness, adhesive, timber material, tolerances, and end treatment.
Request drawings and supporting quality information. The quotation, sample, and delivered batch should match.
Plastic caps can support general moisture and impact protection. Metal covers may suit rough transport or rental use. Coated ends offer a simpler option.
Consider rain exposure, stripping methods, storage, crane handling, and expected reuse.
Check straightness, flange cracks, open finger joints, web swelling, delamination, crushed ends, deep cuts, and unapproved holes. Mark rejected beams and separate them from usable stock.
Regular inspection also reveals poor handling practices before more stock becomes damaged.
A reliable h20 beam manufacturer should provide drawings, tolerances, mechanical values, and quality records. An experienced h20 beam supplier should match the specification to the planned system. Confirm every value applies to the quoted construction.
A formwork beam h20 manufacturer should control timber selection, drying, finger jointing, adhesive application, pressing, cutting, and inspection. A formwork h20 timber beam manufacturer should also maintain consistent dimensions between batches.
Ask how straightness, moisture, bonding, weight, and defects are checked.
A formwork beam h20 supplier should confirm lengths, customization, production planning, bundle size, packaging, and replacement procedures. A formwork h20 timber beam supplier should coordinate technical documents before production.
An h20 beam exporter should also provide weight calculations, shipping documents, and container plans. Apply the same checks to any formwork beam h20 exporter or formwork h20 timber beam exporter.
Check samples for size, straightness, finish, bonding, markings, end protection, and weight. Record accepted details in the purchase specification.
Tip: Use measurable acceptance limits instead of broad terms such as “high quality.”
An h20 beam is a lightweight, engineered support for concrete formwork. Its flanges resist bending, while its web transfers shear. Safe selection requires verified dimensions, capacity, spacing, and condition. Fulin supplies several lengths, protective end options, and customizable specifications. Its production, packaging, quality checks, and export support help buyers reduce waste and plan reliable supply.
