How to select procurement templates (wooden, steel, aluminum)?

According to the type of project, budget, and turnover times, choose: ① Wooden formwork (laminated board): high cost performance, suitable for small and medium-sized construction sites and short-term projects, with a turnover of 3-5 times. The advantages are lightweight and easy to cut, but the disadvantages are easy deformation and high loss; ② Steel formwork: suitable for large-scale projects and long-term turnover, with a turnover of more than 15 times. Its advantages are high strength, no deformation, and smooth surface. Its disadvantages are heavy weight, high installation difficulty, and high price; ③ Aluminum formwork: suitable for high-rise and standardized projects, with a turnover of more than 30 times. Its advantages are lightweight, fast installation, good appearance, and no need for plastering in the later stage. The disadvantage is that it requires high initial investment and is suitable for projects that require batch reuse.

How to choose specifications and models when purchasing steel bars? How to avoid adulteration?

① Specification selection: According to the requirements of the engineering drawings, commonly used threaded steel HRB400E (seismic grade) is used, with specifications ranging from Φ 12 to Φ 32. Large specifications (above Φ 20) are used for beams and columns, and small specifications (Φ 12- Φ 16) are used for slabs and walls, with clear parameters such as seismic grade and yield strength; ② Avoid adulteration: Priority should be given to selecting legitimate manufacturers (such as large steel mills), verifying the surface labeling of steel bars (manufacturer code, specifications, brand), requiring the provision of testing reports, sampling and inspecting the diameter deviation and mechanical properties of steel bars, and eliminating "slimming steel bars" and "non-standard steel bars".

What are the key details to pay attention to when purchasing scaffolding and fasteners?

The core focus is on safety performance, with three key points to be checked: ① Material: Q235B steel is used for steel pipes, with a wall thickness of not less than 3.6mm, and no rust or cracks; ② Fasteners: Use malleable cast iron fasteners with no sand holes or cracks on the surface, and no looseness after tightening. Provide a product certificate (avoid using inferior cast iron fasteners); ③ Supporting accessories: Top and bottom supports need to be anti slip and meet load-bearing standards.

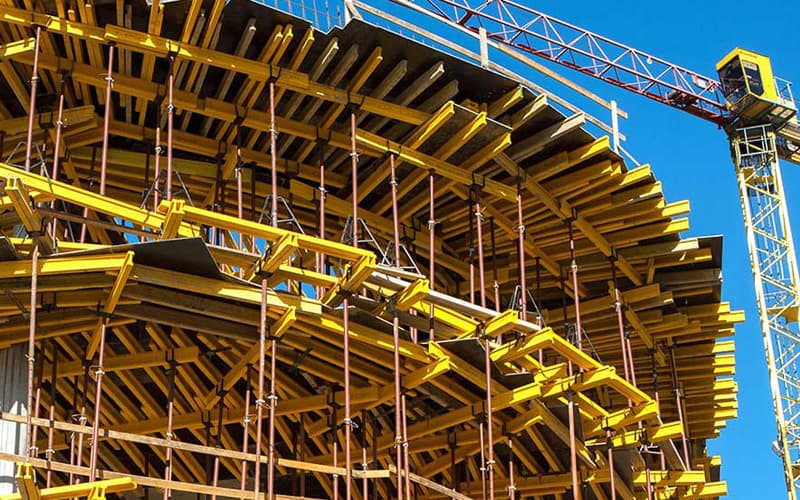

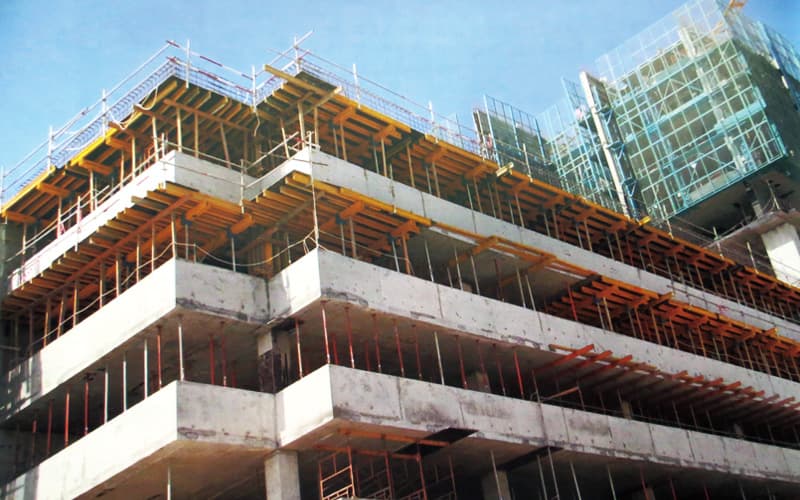

Scaffolding & Formwork

A comprehensive service enterprise for building materials and decoration materials.

Quick delivery of standard products + Customized accessories + Thoughtful services

Home / Scaffolding & Formwork

Introduction of Two Product Lines

The construction concrete pouring system consists of the main structural material (concrete) + formwork system + steel bars+additives+auxiliary materials, while H20 beams, wooden formwork panel, and steel props are the main components of the formwork system.

Scaffolding(include scaffolding shelf and scaffolding board) provides workers with a construction operation platform. Workers need to stand on it for wall building, formwork support, pouring, plastering, and exterior wall construction. At the same time, building materials can be stacked for easy construction

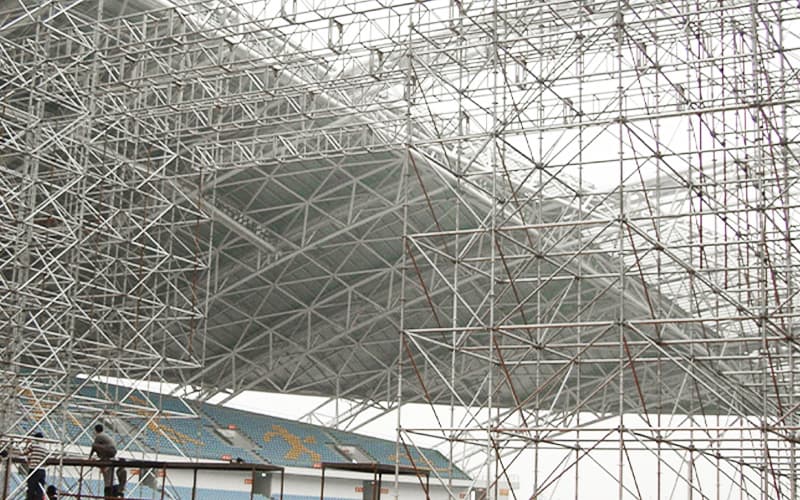

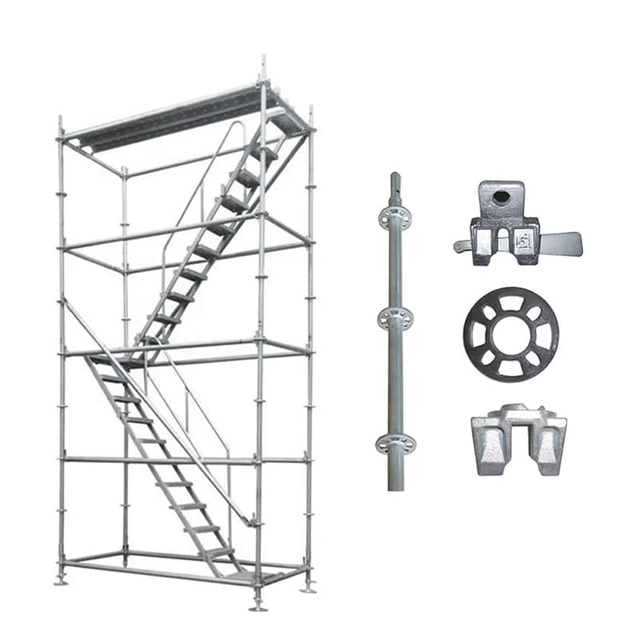

Scaffolding

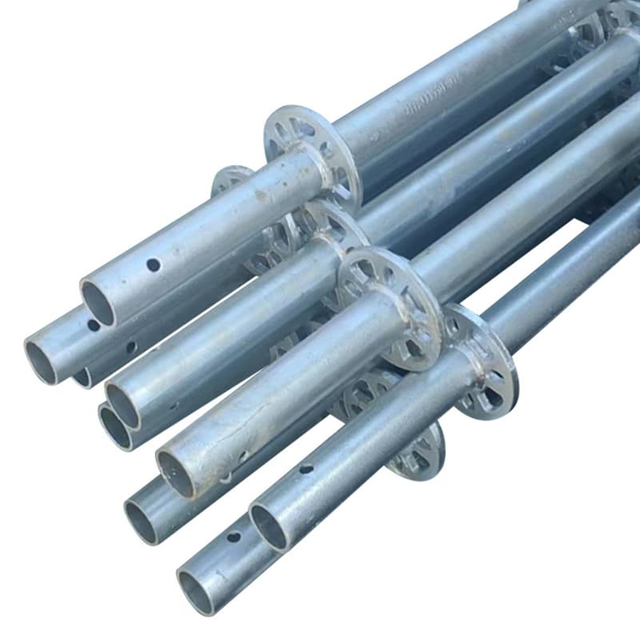

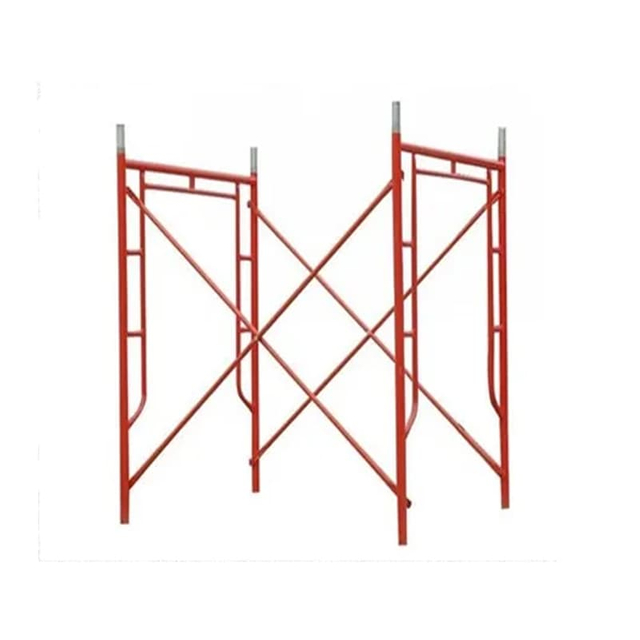

The scaffolding system mainly includes metal rods, connectors, scaffold walk board, and protective facilities. Without scaffolding, external walls, beams, columns, and high-rise buildings cannot be constructed. Scaffolding can be erected in layers and constructed simultaneously, improving efficiency.

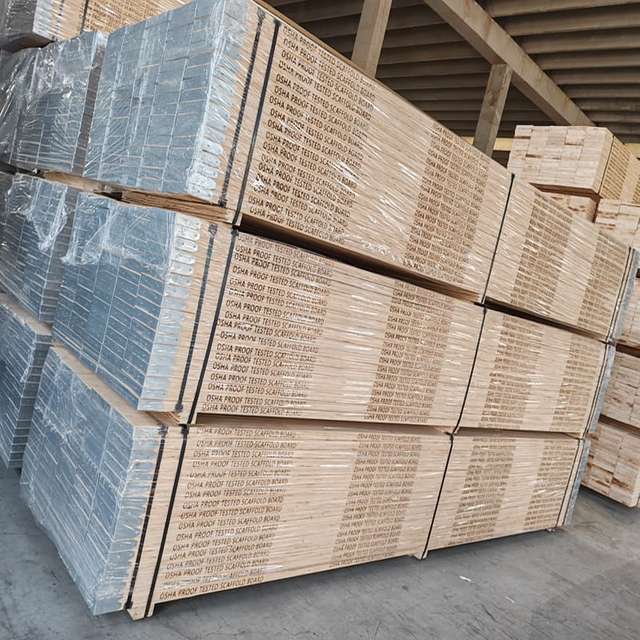

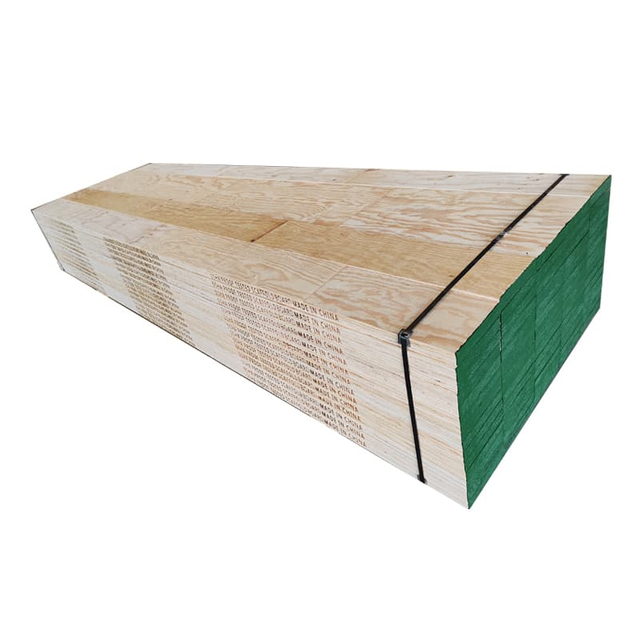

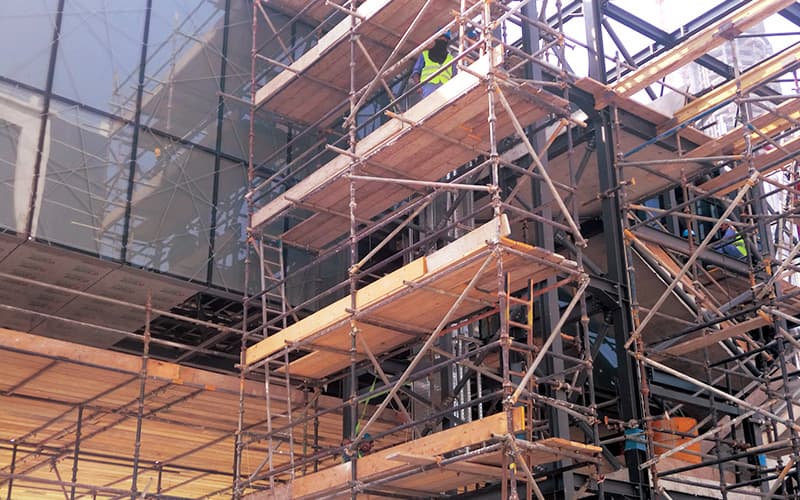

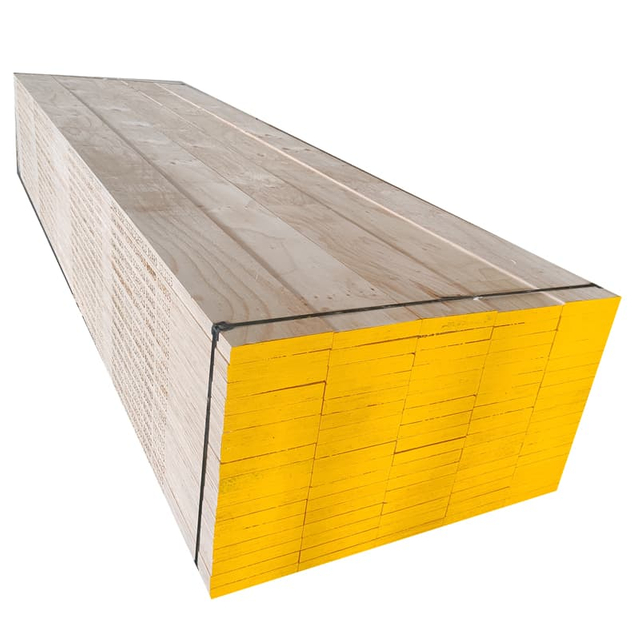

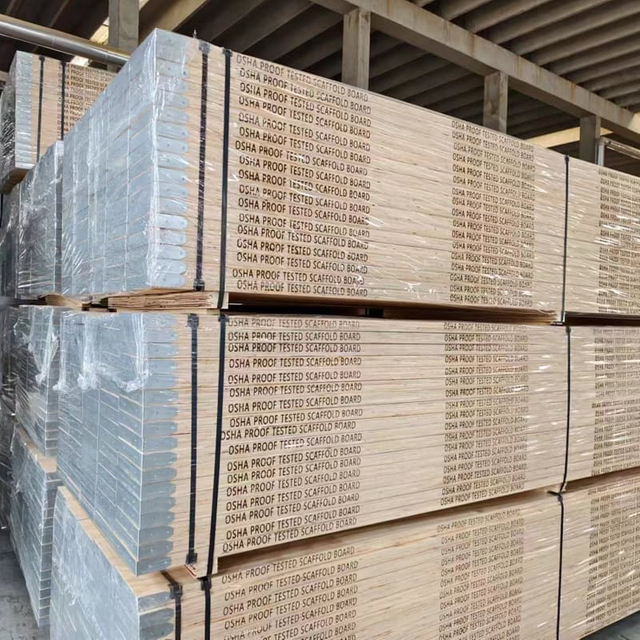

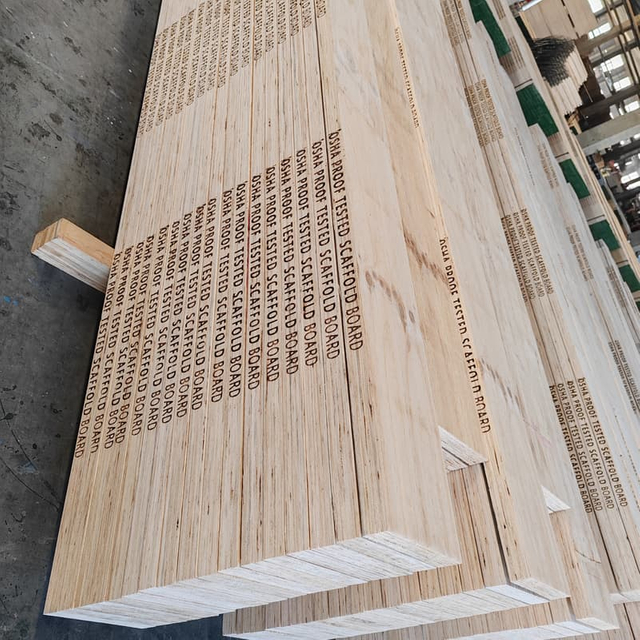

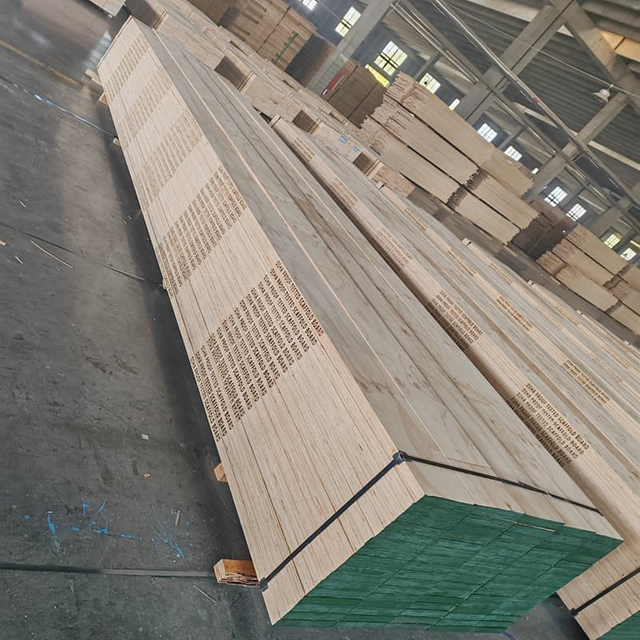

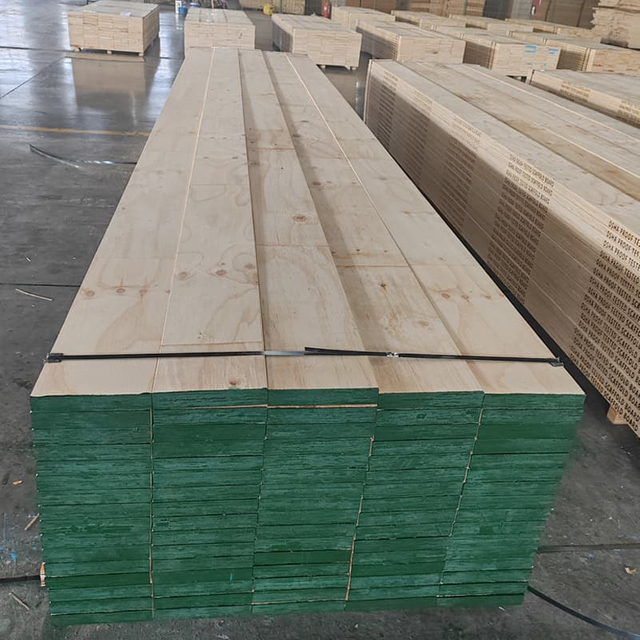

LVL Scaffolding Plank

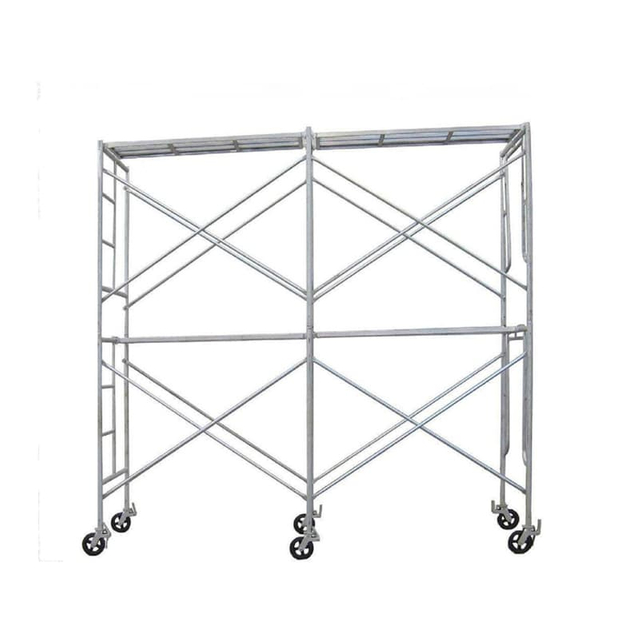

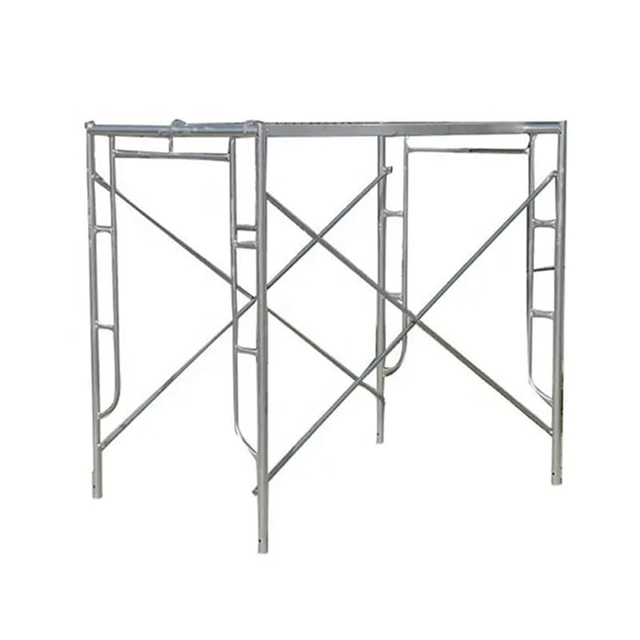

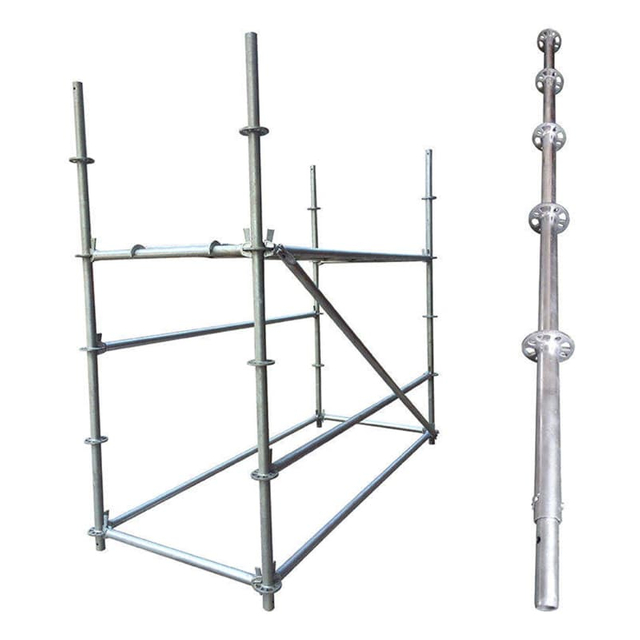

Scaffolding

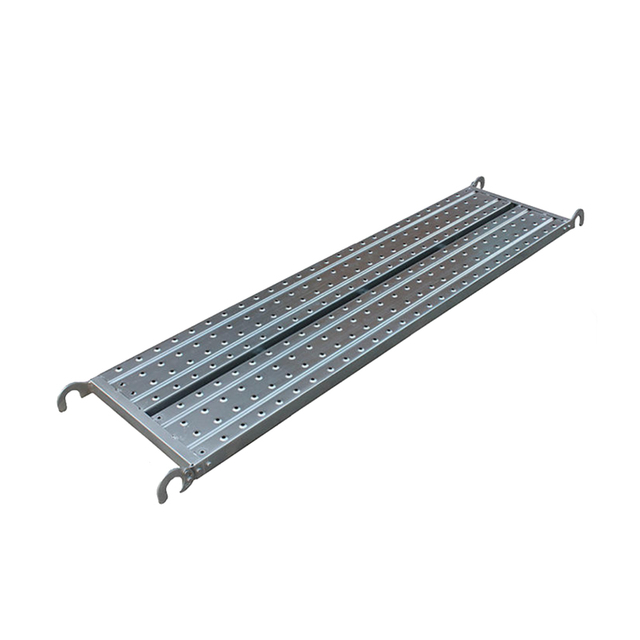

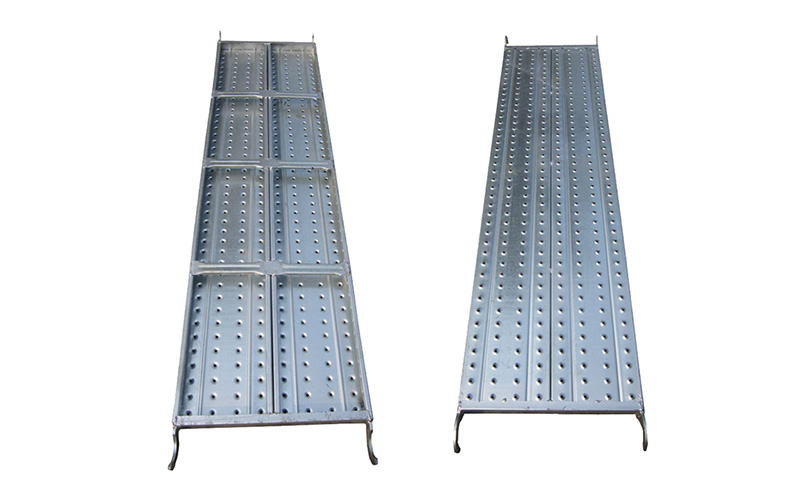

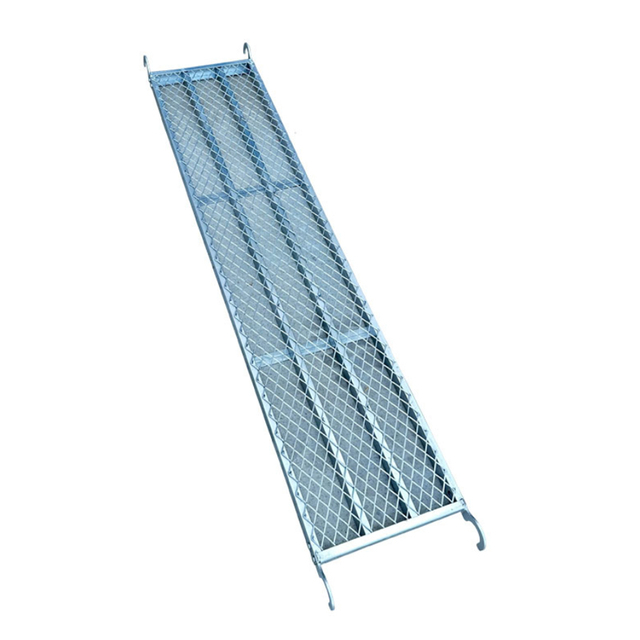

Steel Scaffold Plank

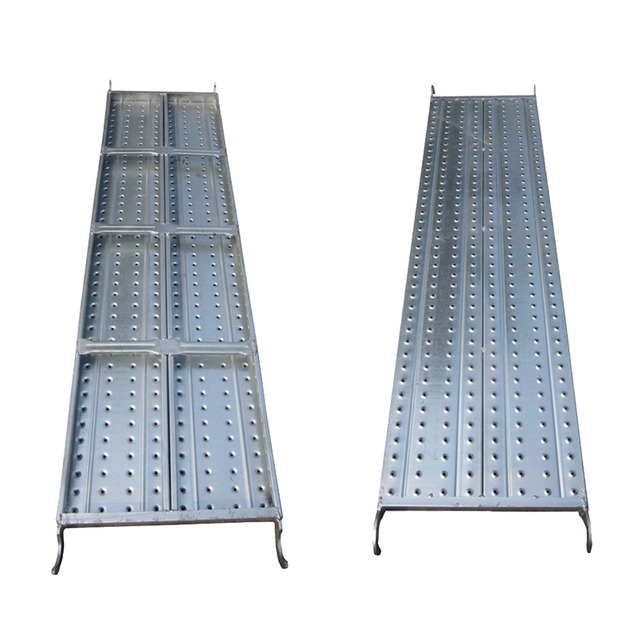

16 ft scaffold plank steel scaffold plank (2)

Formwork

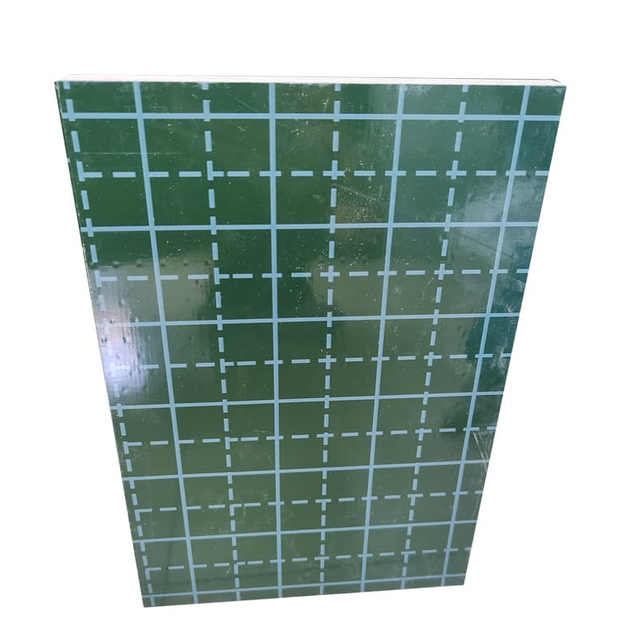

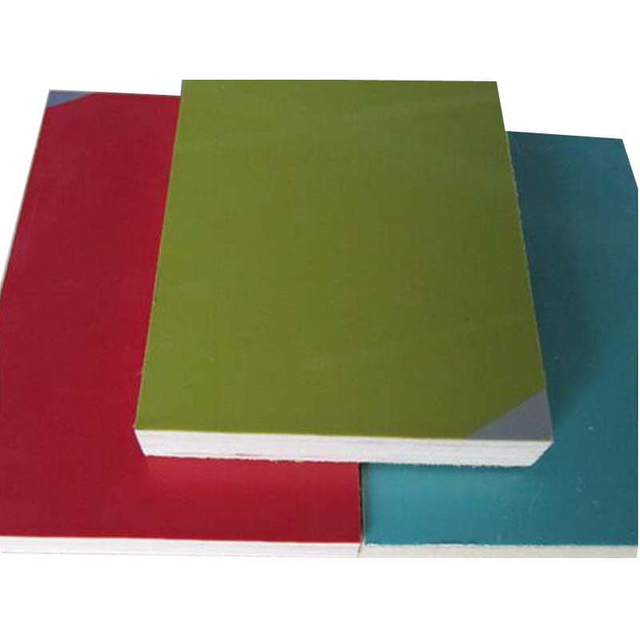

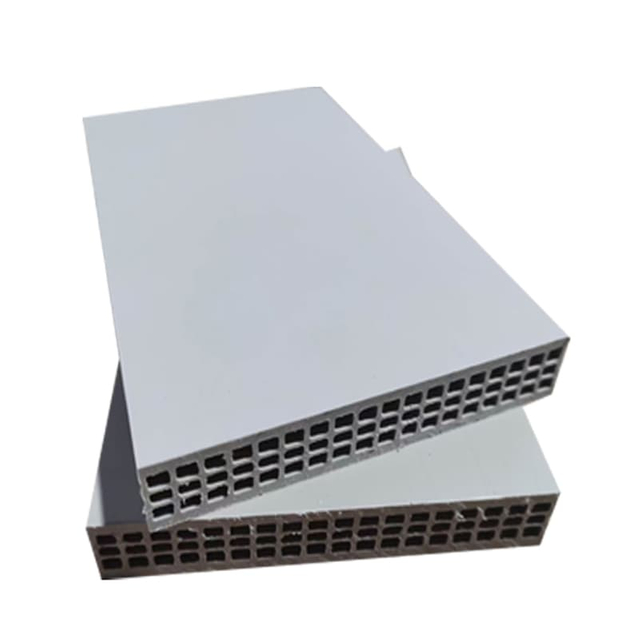

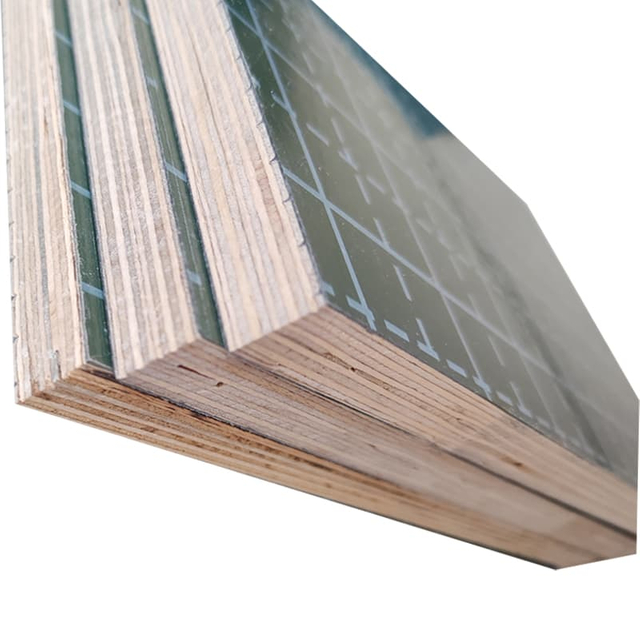

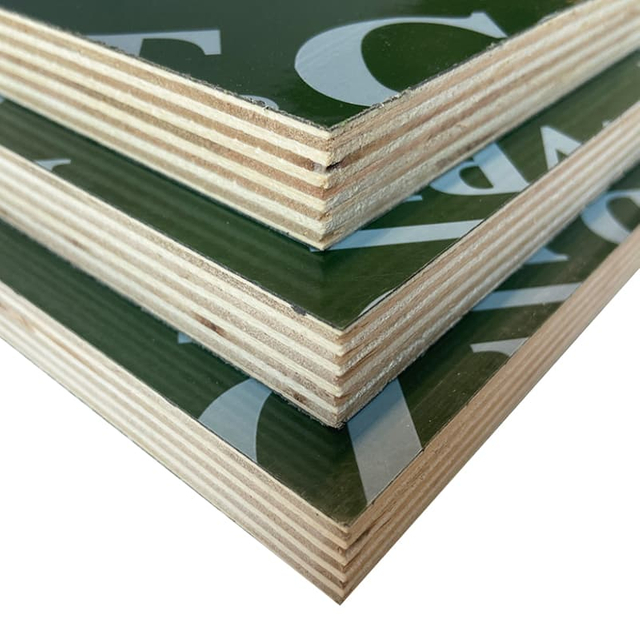

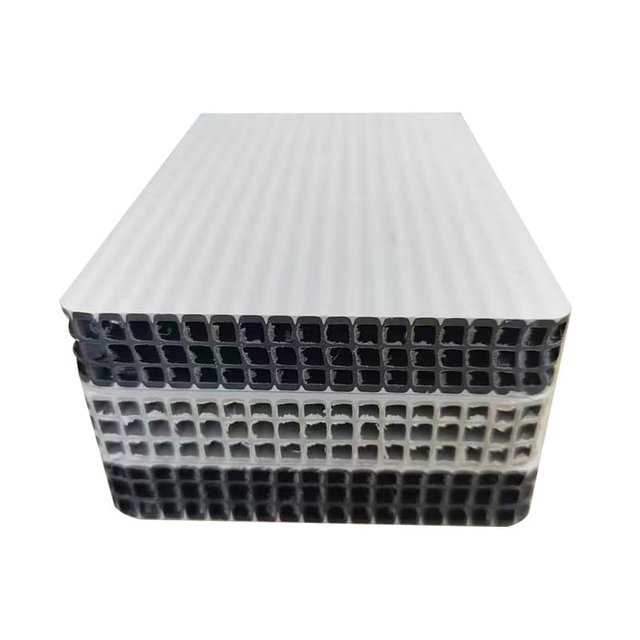

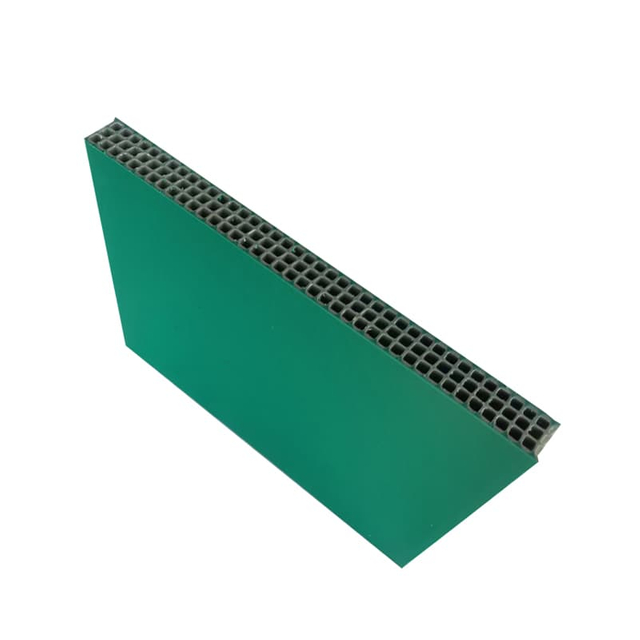

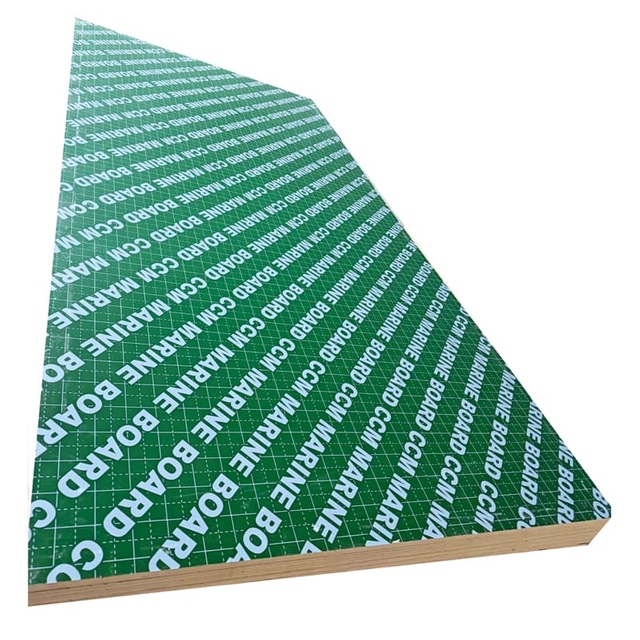

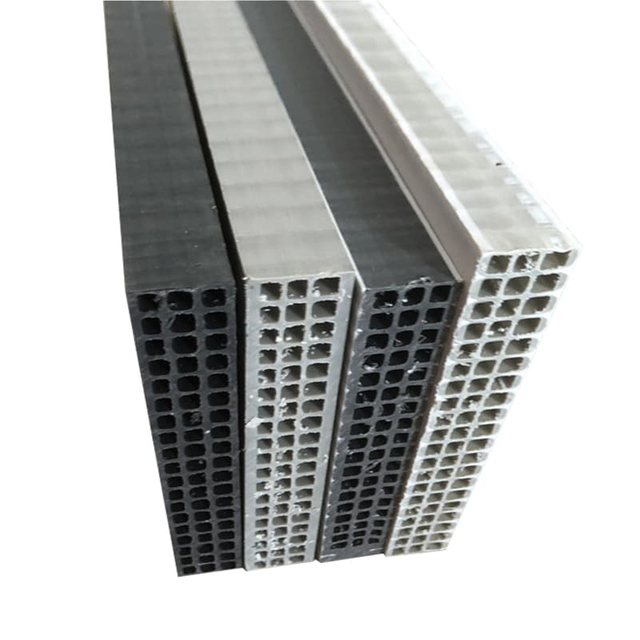

Formwork system is a key part in concrete pouring system for construction. It consists of three parts: templates, supports, and fasteners. The template board can be : film faced plywood, PP film faced plywood, PP hollow formwork, WPC formwork, and 3-ply shuttering plywood. The support include the H20 beams and steel props. Fasteners include screws and nuts.

The role of the supporting components is to support the formwork and prevent it from collapsing; The function of fasteners is to clamp the template and prevent it from expanding outward. In this way, the concrete will be formed into concrete according to the design shape.

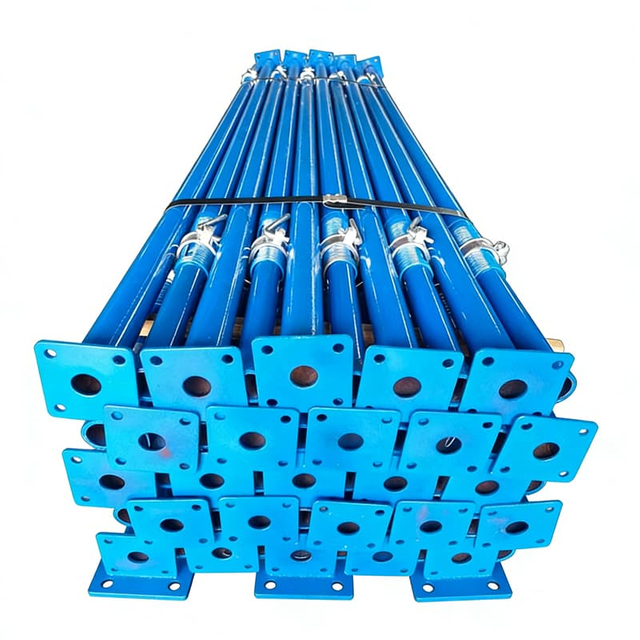

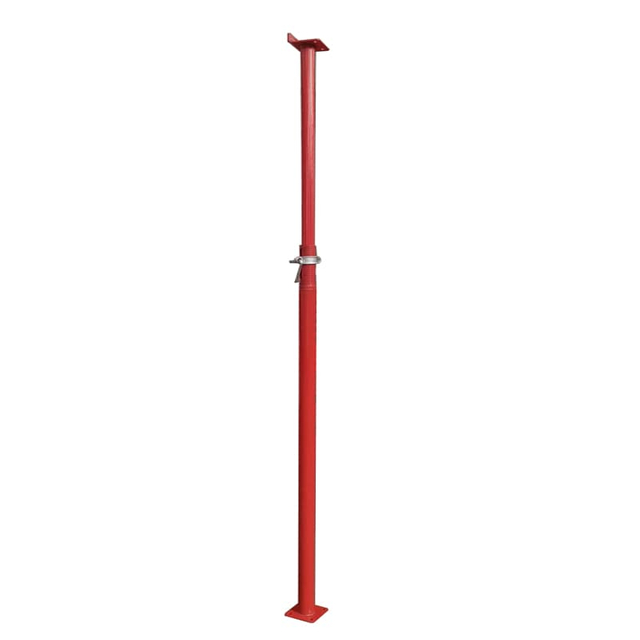

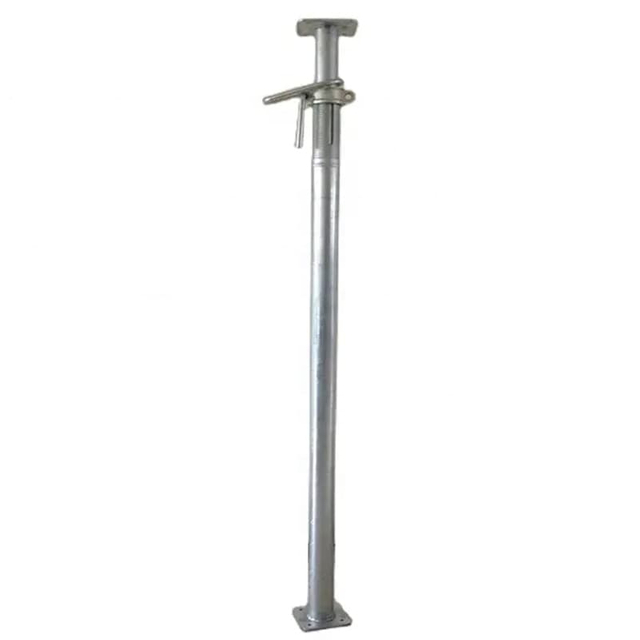

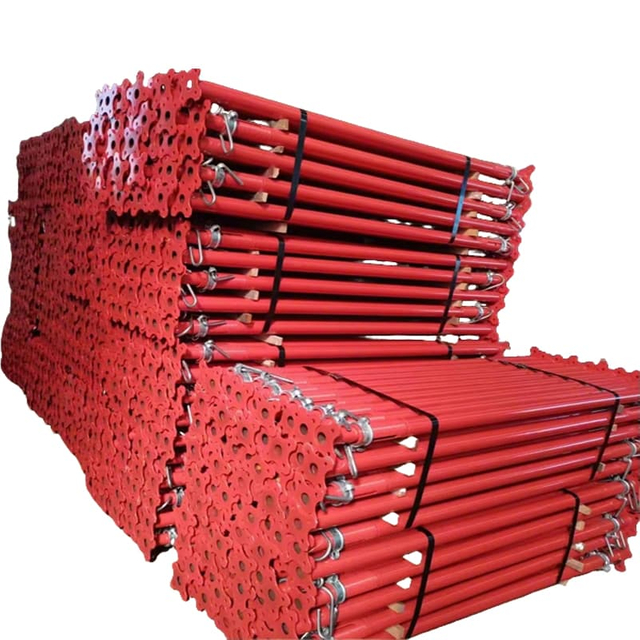

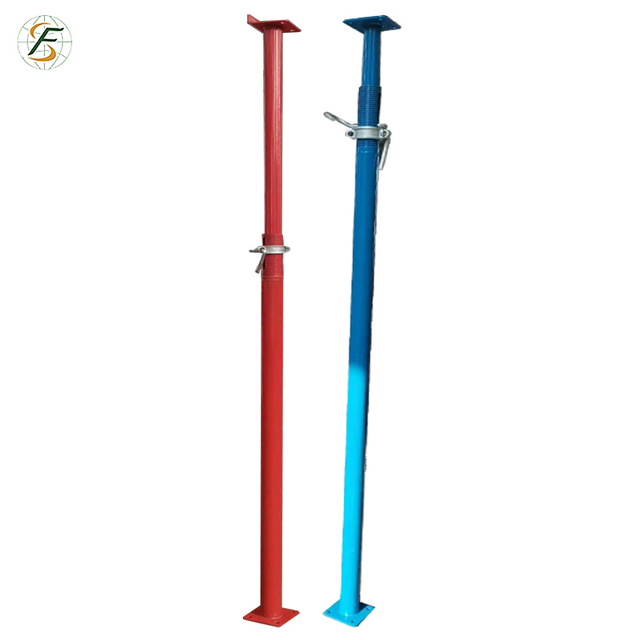

Steel Prop

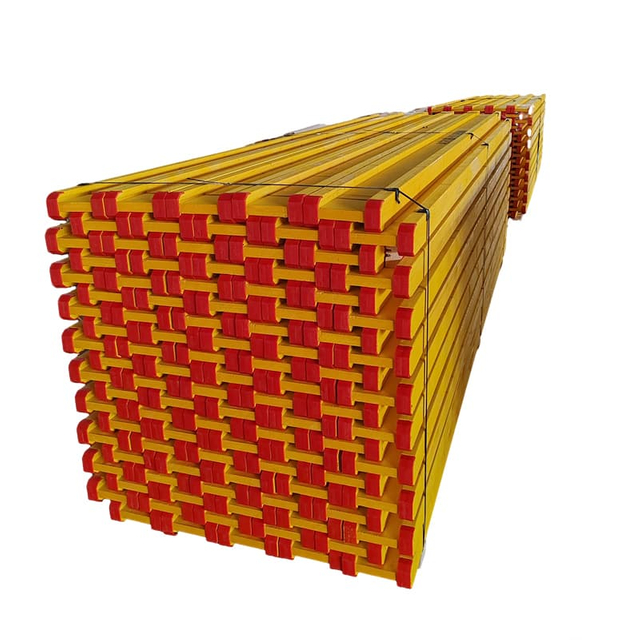

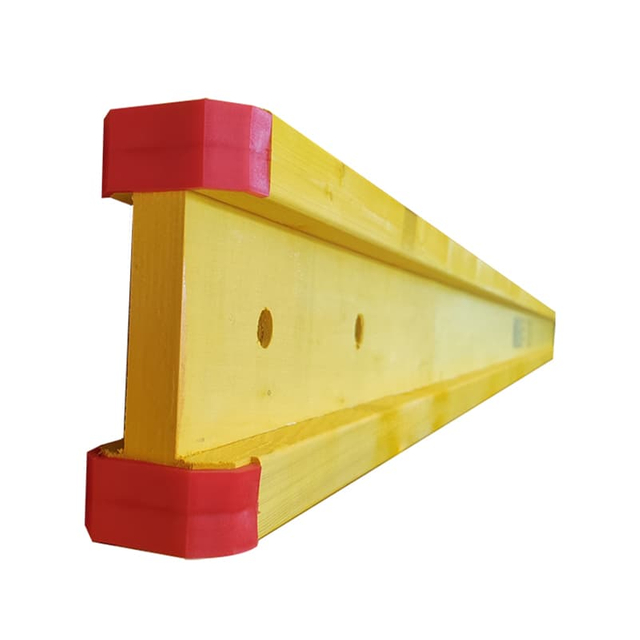

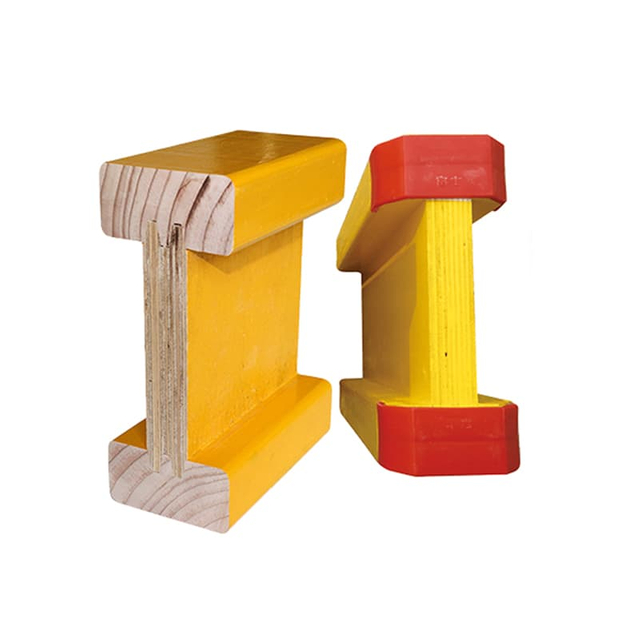

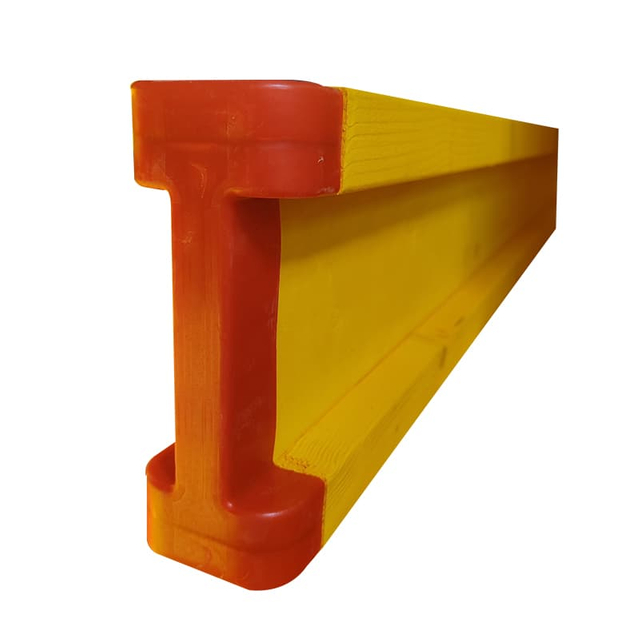

H20 BEAM

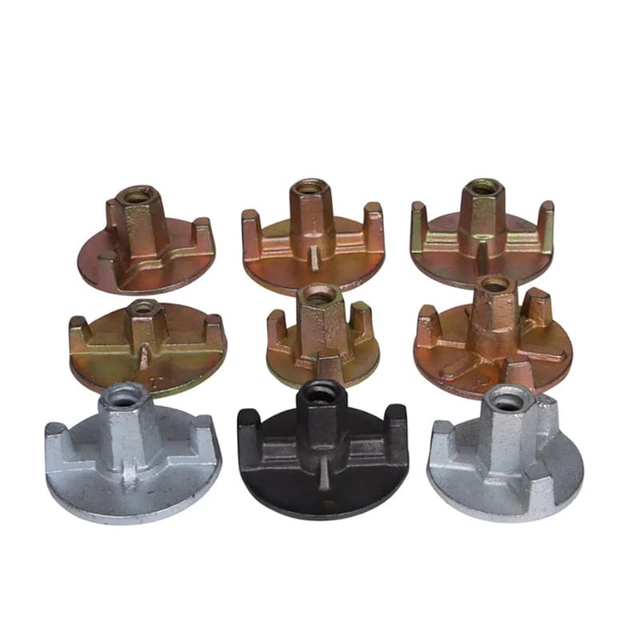

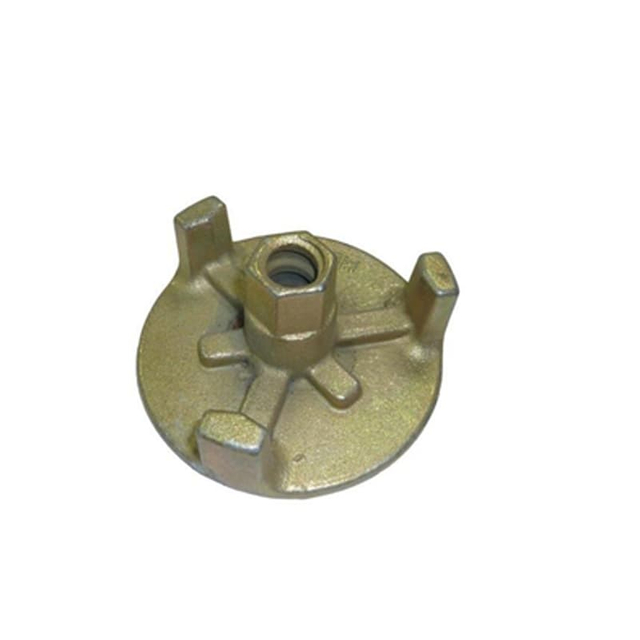

Fastener

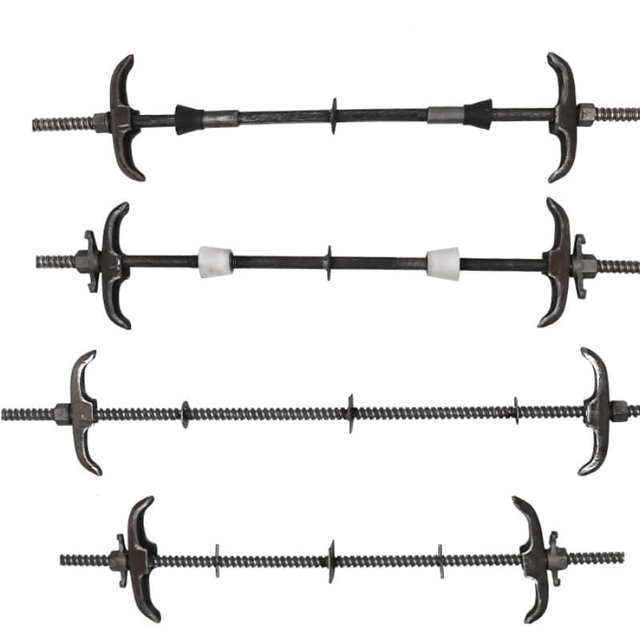

water stop bolt for 16 ft scaffold plank

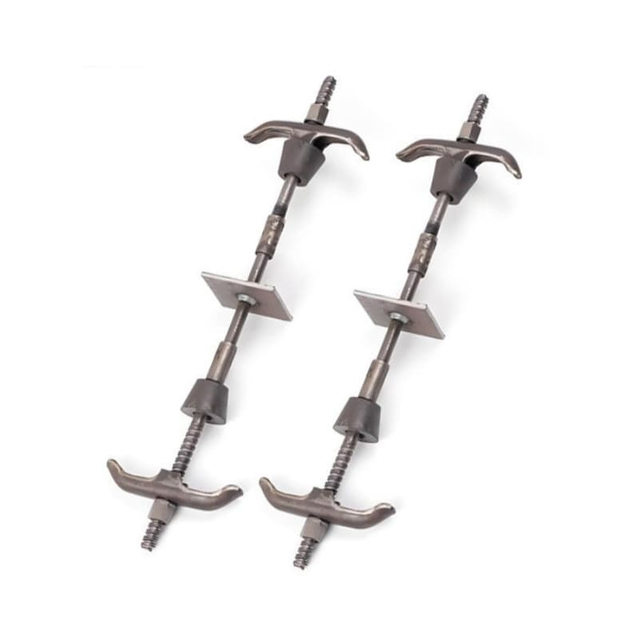

water stop bolt for 20 ft scaffold plank

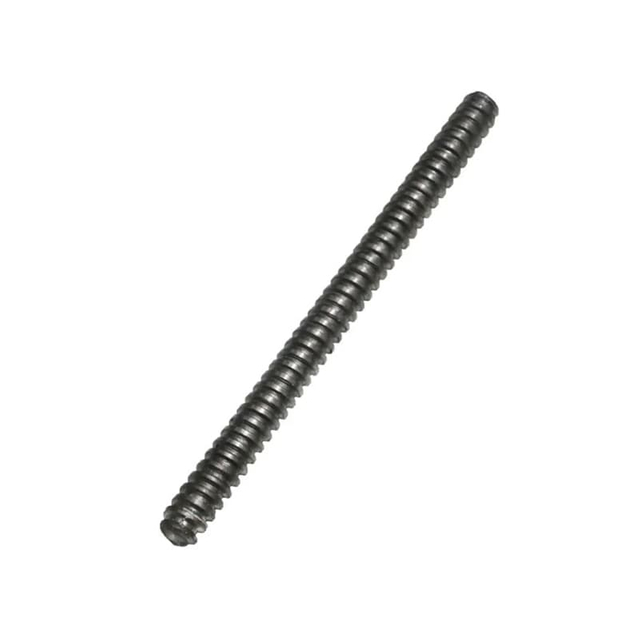

through-wall bolt for 24 ft scaffold plank

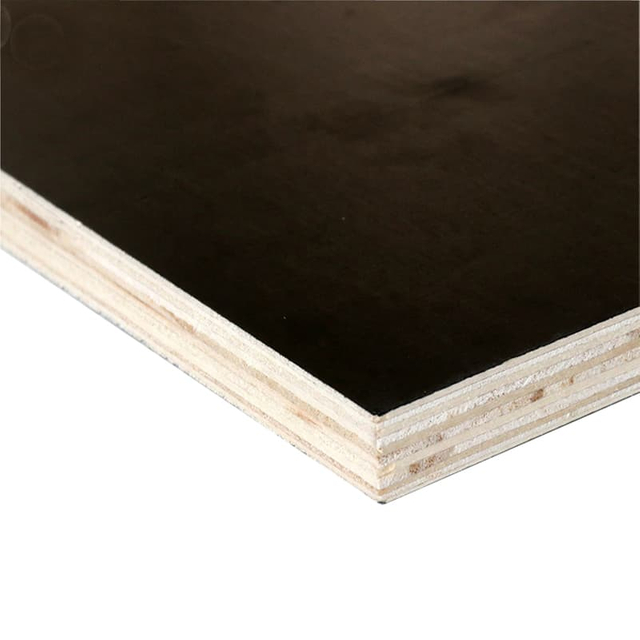

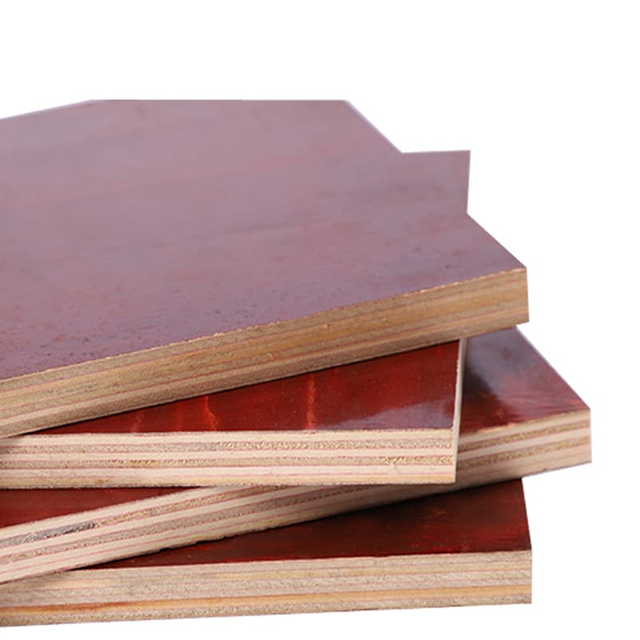

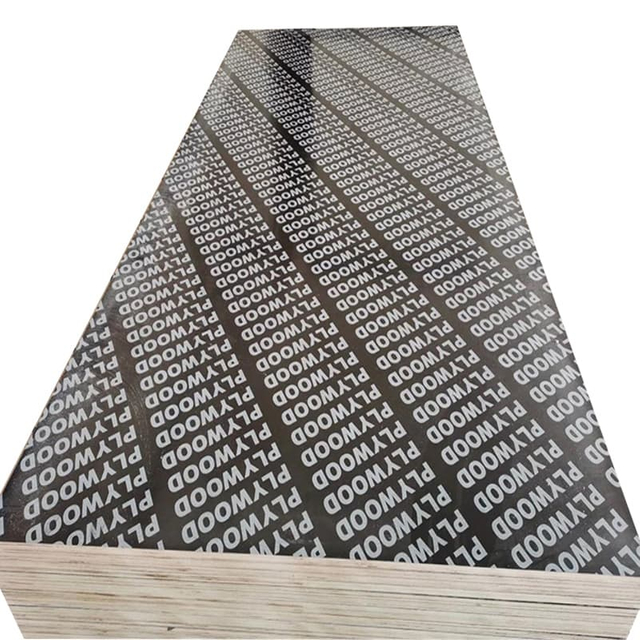

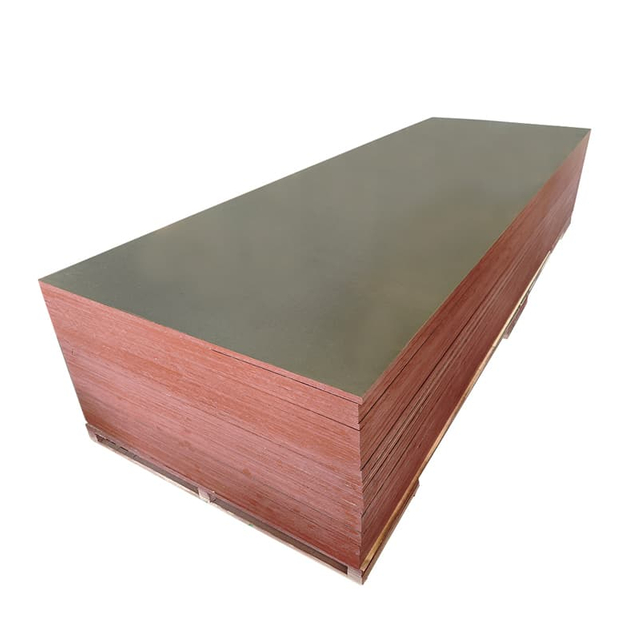

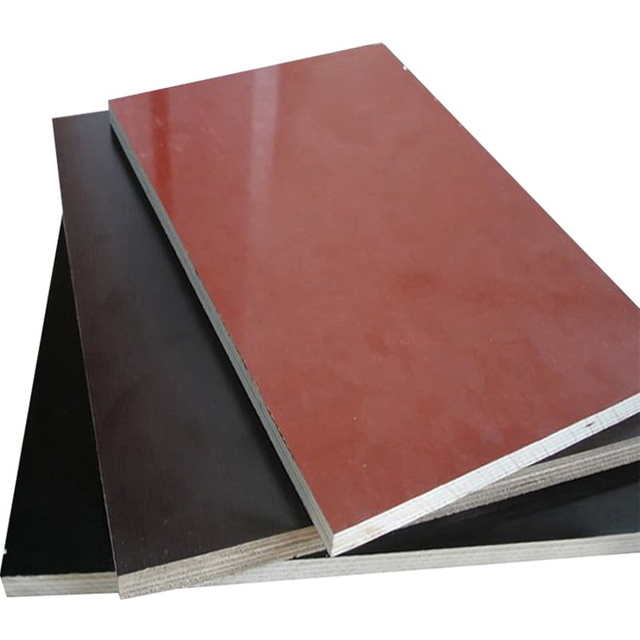

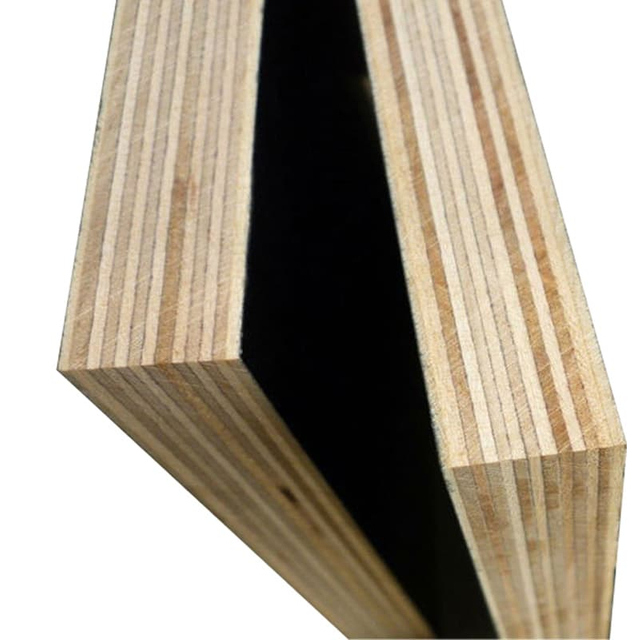

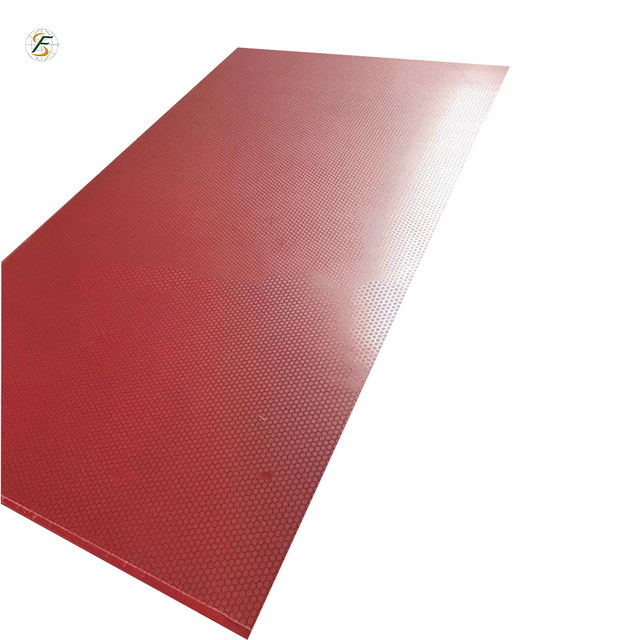

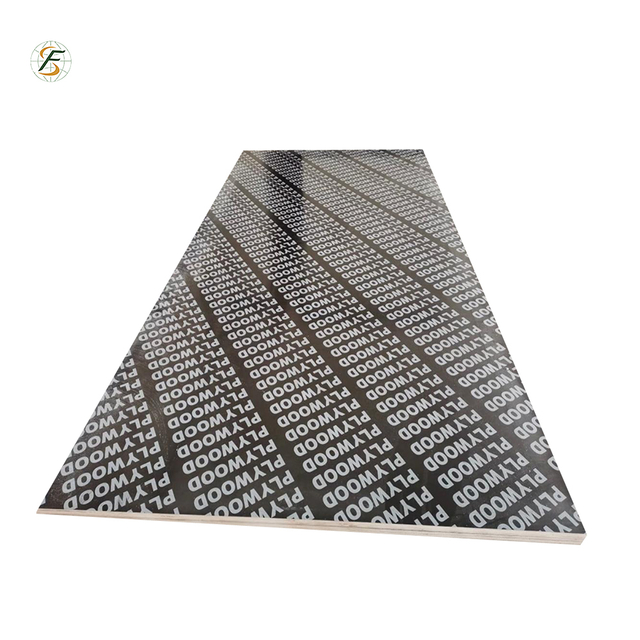

Film Faced Plywood

Accessories & Full Package Supply

When customers purchase multiple building materials in small quantities, or mainly purchase one product with a small amount of other products, we can provide customers with all the goods, unified delivery, and unified document preparation, which shortens the procurement time and saves time and effort.

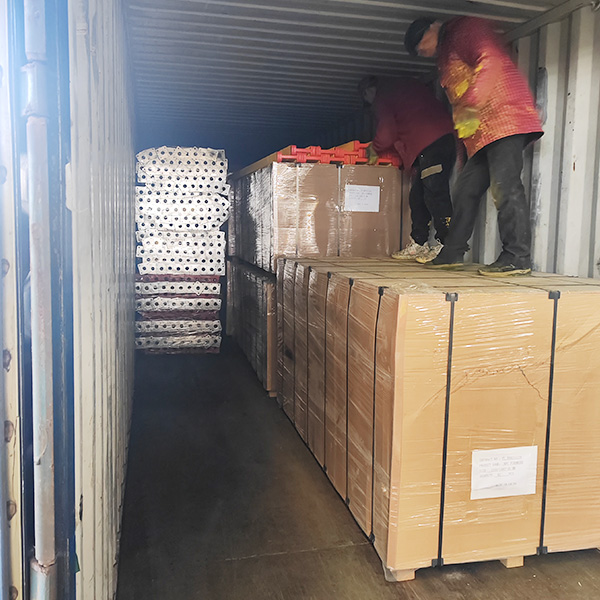

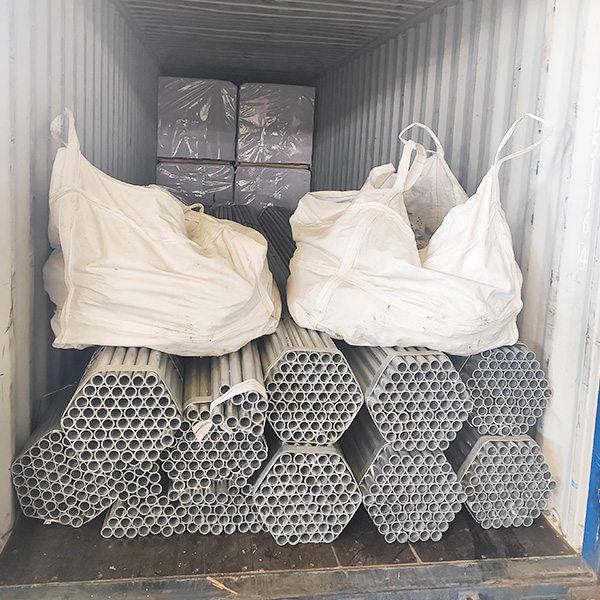

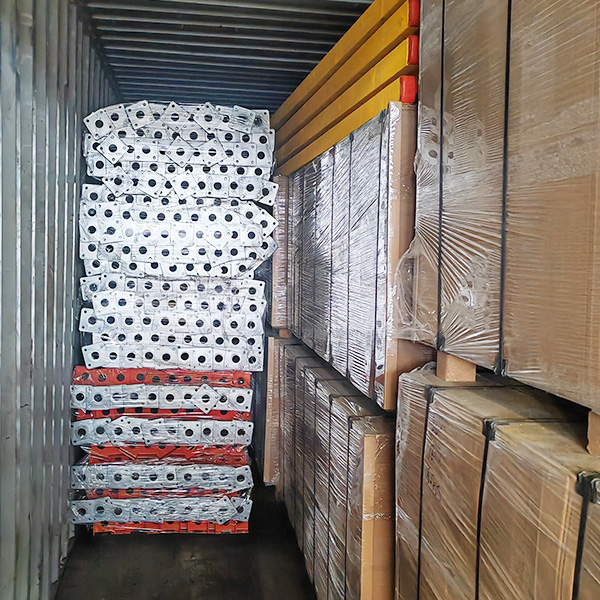

For example, in one container we can combine H20 BEAM+ Steel prop+ film faced plywood ; H20 BEAM+ PP hollow formwok+ steel prop; LVL scaffolding plank+ steel scaffolding+scaffolding accessories

Quality, Compliance & Innovation

The supply of building materials is related to engineering quality, construction safety, and project efficiency. We always adhere to the principle of "quality as the foundation, innovation as the soul", and implement strict quality control throughout the entire process. With continuous technological and service innovation, we meet the diversified needs of various customers such as construction sites and projects, and help projects efficiently advance and build a solid foundation for construction.

Quality is the lifeline of building materials supply, and it is also the core confidence of our industry. We always adhere to the quality control system of "source control, strict process management, and full traceability". From product procurement, warehouse management to distribution and delivery, we strive for excellence in every aspect to prevent unqualified products from entering the construction site. We will also keep up with the development trend of the construction industry, actively introduce new building materials, upgrade traditional products, and adapt to the differentiated needs of different engineering scenarios

FAQ

Q How to select procurement templates (wooden, steel, aluminum)?

A According to the type of project, budget, and turnover times, choose:
① Wooden formwork (laminated board): high cost performance, suitable for small and medium-sized construction sites and short-term projects, with a turnover of 3-5 times. The advantages are lightweight and easy to cut, but the disadvantages are easy deformation and high loss;
② Steel formwork: suitable for large-scale projects and long-term turnover, with a turnover of more than 15 times. Its advantages are high strength, no deformation, and smooth surface. Its disadvantages are heavy weight, high installation difficulty, and high price;
③ Aluminum formwork: suitable for high-rise and standardized projects, with a turnover of more than 30 times. Its advantages are lightweight, fast installation, good appearance, and no need for plastering in the later stage. The disadvantage is that it requires high initial investment and is suitable for projects that require batch reuse.
Q How to choose specifications and models when purchasing steel bars? How to avoid adulteration?

A ① Specification selection: According to the requirements of the engineering drawings, commonly used threaded steel HRB400E (seismic grade) is used, with specifications ranging from Φ 12 to Φ 32. Large specifications (above Φ 20) are used for beams and columns, and small specifications (Φ 12- Φ 16) are used for slabs and walls, with clear parameters such as seismic grade and yield strength;

② Avoid adulteration: Priority should be given to selecting legitimate manufacturers (such as large steel mills), verifying the surface labeling of steel bars (manufacturer code, specifications, brand), requiring the provision of testing reports, sampling and inspecting the diameter deviation and mechanical properties of steel bars, and eliminating "slimming steel bars" and "non-standard steel bars".
Q What are the key details to pay attention to when purchasing scaffolding and fasteners?

A The core focus is on safety performance, with three key points to be checked:
① Material: Q235B steel is used for steel pipes, with a wall thickness of not less than 3.6mm, and no rust or cracks;
② Fasteners: Use malleable cast iron fasteners with no sand holes or cracks on the surface, and no looseness after tightening. Provide a product certificate (avoid using inferior cast iron fasteners);
③ Supporting accessories: Top and bottom supports need to be anti slip and meet load-bearing standards.
